A gate can look impressive in a showroom and still be the wrong choice at a real driveway. The decision between trackless versus sliding gates affects how vehicles enter, how much frontage you need, how the system handles rainwater and debris, and the overall architectural character of the property. For homes, shop lots, factories, and commercial sites, the best answer comes from the layout first, then the design.
Thank you for reading this post, don't forget to subscribe!A precision-fabricated gate should do more than close an opening. It should complement the façade, protect the premises, operate reliably every day, and suit the way people use the site. That is why a site measurement and an honest assessment of access conditions matter more than choosing a style based on appearance alone.

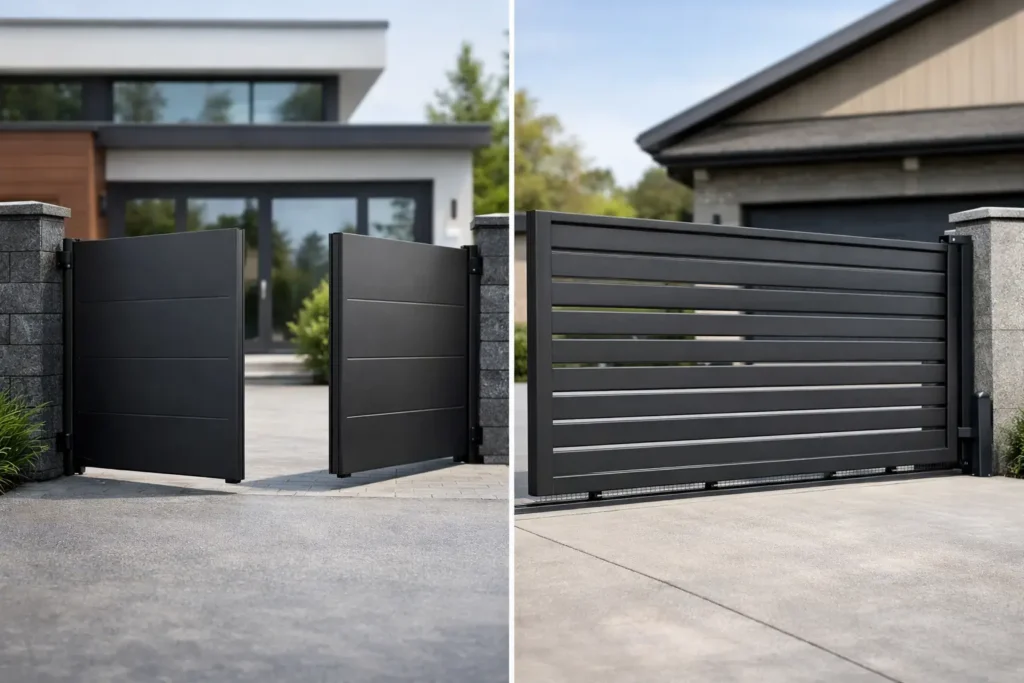

Trackless Versus Sliding Gates: The Core Difference
In common local usage, a trackless gate usually refers to an automated swing or folding gate that does not run on a floor-mounted track across the driveway. It may use articulated arms, folding leaves, concealed brackets, or a guided operating system to open without a rail at ground level. This makes it a popular contemporary option where a clean driveway finish is a priority.
A conventional sliding gate moves sideways, parallel to the boundary wall or fence. Many sliding systems run on a bottom track with wheels, while cantilever sliding gates use a counterbalanced structure and guide rollers instead of a track across the driveway. This distinction is essential: a cantilever gate is technically trackless, even though it remains a sliding gate.
For that reason, specifications should never stop at the phrase “trackless autogate.” The fabricator should confirm the opening mechanism, required clearance, support-post design, motor arrangement, safety devices, and structural steel reinforcement before fabrication begins.
When a Trackless Gate Is the Better Fit
Trackless folding and swing-style gates are often selected for landed homes where the driveway is relatively shallow or where the owners want a sleek, uninterrupted entrance floor. Without a rail crossing the driveway, there is no channel for leaves, sand, gravel, or standing water to collect. This can be especially valuable in tropical conditions, where heavy rain can expose weaknesses in drainage and poorly maintained moving parts.
They also suit contemporary façades. A custom trackless gate can be fabricated with laser-cut panels, horizontal aluminum fins, perforated metal, timber-look aluminum, or a clean combination of powder-coated steel and architectural aluminum. The gate becomes part of the front elevation rather than a separate security fixture.
Operationally, folding leaves can reduce the swing area compared with a full-length single-leaf swing gate. That helps on properties where cars are parked close to the entrance. However, the gate still needs clear space within the property boundary as it opens. It is not a solution for every tight site.
Trackless systems demand accurate alignment. The posts, hinges, brackets, folding joints, and motor arms must work as one assembly. If the gate frame is too heavy for the mechanism, the post footing is inadequate, or the leaf geometry is poorly calculated, performance will suffer. Premium materials and precision fabrication are not optional details here. They are what keep the gate operating smoothly over years of daily use.
Advantages of a trackless design
A well-engineered trackless gate provides a cleaner driveway appearance, avoids a floor rail at the entrance, and can create a high-end folding or swing motion that suits modern residences. It is particularly practical where floor levels are uneven, the entrance has decorative tiles or stone finishes, or drainage channels make a ground track undesirable.
The trade-off is that it has more moving joints than a basic sliding gate. Hinges, linkages, automated arms, and folding sections require quality hardware, proper adjustment, and periodic servicing. A trackless gate should be designed as a complete system, not simply fitted with an automation kit after installation.
When a Sliding Gate Makes More Sense
Sliding gates are often the stronger choice for wide entrances, busy commercial premises, and sites where the driveway needs to remain fully clear behind the gate line. Because the gate travels sideways, it does not swing inward into parking space. This is useful for factories, warehouses, shop lots, and homes with long frontages or multiple vehicles.
A sliding gate can also accommodate substantial widths more efficiently than many swing systems. With properly designed steel framing, it can support solid infill panels, vertical battens, expanded metal, laser-cut screens, or privacy-focused aluminum cladding without losing stability. For commercial properties, the design can be matched with access control, card readers, intercom systems, safety photocells, and heavy-duty motors rated for frequent cycles.
The key requirement is side clearance. A standard sliding gate generally needs a run-back area along the fence or wall equal to the opening width, plus space for posts and motor components. If a 16-foot driveway has only 8 feet of clear boundary wall beside it, a single-panel sliding design will not work without a telescopic configuration or a different opening method.
Tracked sliding gates also need regular cleaning. Dirt, small stones, leaves, and accumulated water can interfere with wheels and tracks. A correctly installed track with suitable drainage is dependable, but it should be inspected rather than ignored. For properties exposed to heavy debris or uneven driveway surfaces, a cantilever sliding gate may justify its higher structural and fabrication cost.
Advantages of a sliding design
A sliding gate keeps the interior driveway clear, works well for wide openings, and offers excellent potential for heavy-duty commercial use. It can be a practical choice when the owner wants a large, secure entrance with minimal swing clearance.
Its limitation is the lateral space requirement. The gate needs somewhere to travel. It may also require a more visible motor and track arrangement unless these elements are integrated carefully into the landscape, wall, or gate structure.
Compare Space, Security, and Daily Operation
The first question is not which gate is more modern. It is how the entrance actually functions at peak use. A homeowner may need to open the gate while one car waits outside and another is parked just inside. A business may need delivery vehicles to enter at different times of day. These details shape the right mechanism.
For narrow properties with limited side run-back space, a trackless folding gate can be more practical than a sliding gate. For a broad factory entrance with a long perimeter wall, a sliding gate often provides cleaner traffic flow. Where both options are possible, the preferred choice may come down to architectural intent and maintenance expectations.
Security depends on more than the opening system. Frame thickness, weld quality, post foundations, locking points, anti-lift features, panel gaps, motor controls, and manual release provisions all matter. A lightweight decorative gate with a powerful motor is not automatically secure. Likewise, an oversized steel gate without correctly sized hardware will become difficult to operate.
For residential projects, a balance of visibility and privacy is usually effective. Horizontal slats or perforated panels can create a controlled view from the street while maintaining airflow. Commercial sites may need denser infill, taller gate heights, reinforced posts, and controlled vehicle access. Every design should be assessed against local site conditions, not copied from another property.
Materials That Hold Up in Tropical Conditions
Malaysia’s heat, humidity, and rain place real demands on exterior metalwork. Galvanized steel, quality aluminum sections, stainless-steel hardware, and durable powder-coated finishes all have a role in extending service life. The right material mix depends on the gate design and exposure level.
Mild steel remains a strong choice for structural gate frames because it can be fabricated into large, rigid sections. It should be properly treated and finished to resist corrosion, especially at welded joints and lower sections exposed to splashback. Aluminum can reduce weight and deliver a refined contemporary finish, making it useful for slatted or decorative infill panels. Stainless-steel components are valuable in hinges, fasteners, and selected visible details where corrosion resistance is critical.
Drainage also deserves attention. Water should not pool at posts, tracks, wheel paths, or gate stops. A visually refined installation is only complete when its foundations, levels, and drainage support reliable movement.
Design the Gate as Part of the Whole Entrance
The strongest gate projects are coordinated with the surrounding architecture. Boundary fences, pedestrian gates, porch roofs, aluminum windows, glass railings, and façade panels should share compatible lines, colors, and material finishes. A dark powder-coated trackless gate with laser-cut detailing may suit a modern home, while a large sliding gate with industrial steel framing may better serve a commercial compound.
Home Alloy Design approaches this work as custom architectural metal fabrication rather than an off-the-shelf gate purchase. Accurate site measurements, made-to-order steelwork or aluminum detailing, and professional installation allow the mechanism and appearance to be resolved together. This is especially valuable for properties with sloping driveways, irregular walls, existing columns, or specific privacy requirements.
Before deciding, stand at the driveway and consider the full opening path, vehicle turning radius, drainage direction, side clearance, and the gate’s visual relationship with the building. The right gate is the one that looks intentional on day one and continues to operate with confidence long after the project is complete.
